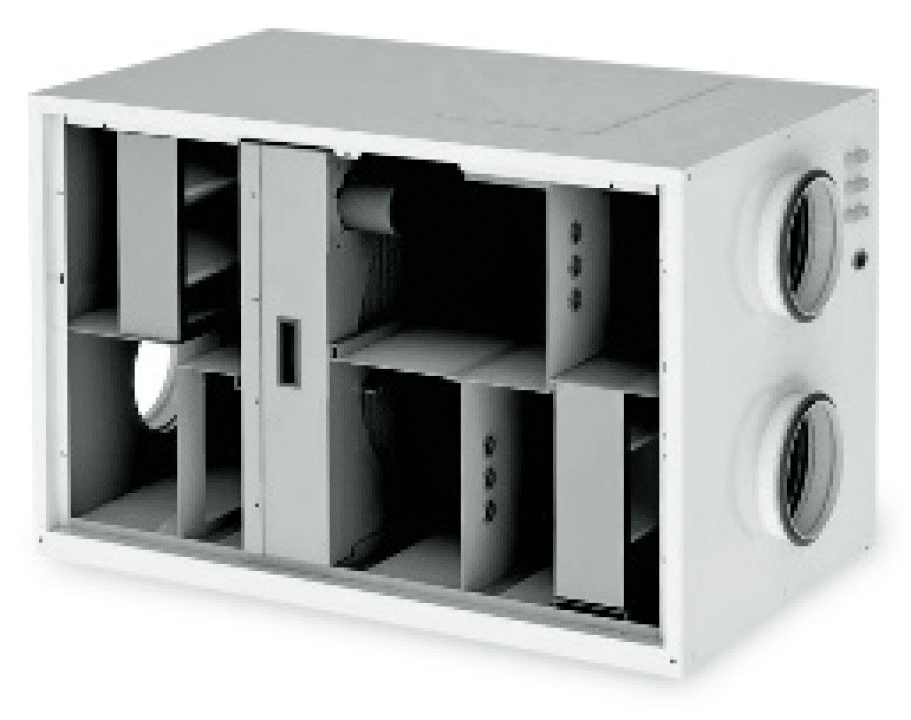

Heat Recovery for Residential ReVent BRH – OxyVent BRH
Series of 3 models to cover up to 800 m3/h airflow rate, for floor installation and composed of :
- Precoated steel casing with double skin panels (15 mm min thick.) insulated by polyurethane foam; precoated steel sheet metal baseframe for floor installation.
- ISO 16890 ePM10 50% efficiency filters on both air intakes; as an option and in place of ePM10 50% type, ePM1 70% compact filter in polypropylene with low air pressure drop.
- Hygroscopic aluminium enthalpic thermal wheel with very high efficiency (both temperature and moisture), equipped with low energy consumption induction motor and driven by pulley and belt. Supply and exhaust plenum fans with plastic impeller and housing, direct driven by EC technology motors.
- Front plastic collars fitted with additional airtight rubber gasket.
- Built-in electronic control complete with NTC sensors inside the unit and plug-in type user interface (possibly remotable).
- Wireless control panel and sensors.
